Based on his popular 'Things Every AutoCAD User Should Know' session at Autodesk University and other industry events, Dan gives you the answers to frequently asked AutoCAD. Adding Comments (putting some junk back in)This info-packed guide reveals some of the best kept AutoCAD secrets on technical standards, AutoLISP programming, DOS functions, scripts, 3D, and everything in between. So, if you know how to type commands at the AutoCAD command prompt.

If you can establish a technical drawing process that you perform frequently – you can automate it with AutoCAD. How could you use AutoCAD Scripting to automate your workflow?One of the great benefits of using AutoCAD to create your technical drawings is the ability to adapt AutoCAD to suit your company’s processes. Browse Nanodegree programs in AI, automated systems & robotics, data science, programming and business.

autocad scripts for dummies

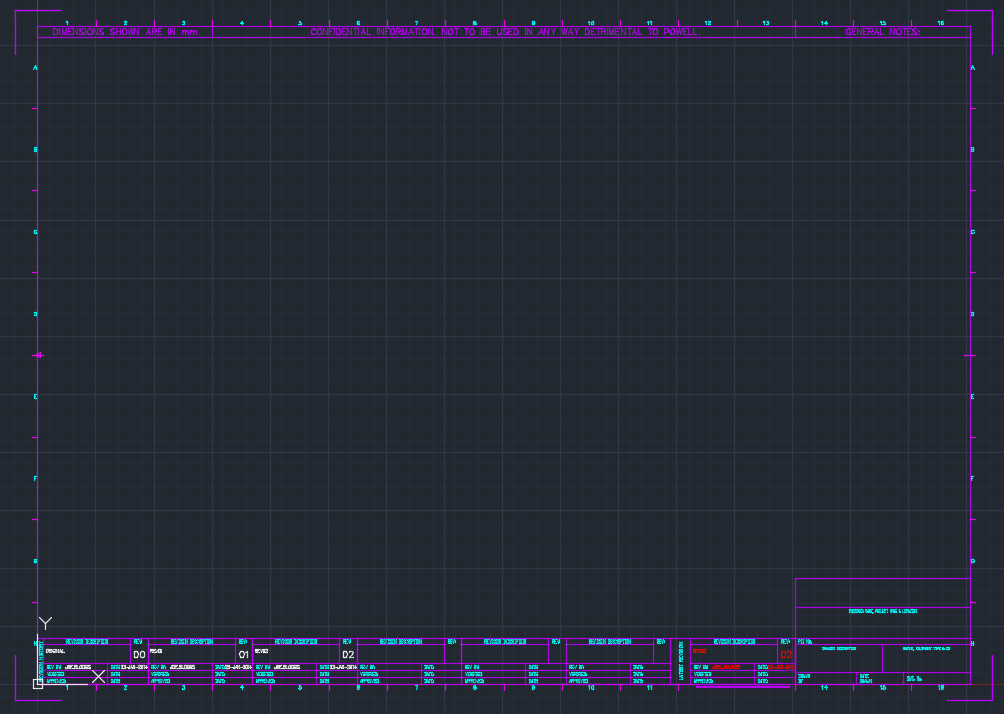

We will work through the instructions that we would usually need to give AutoCAD to make a plot, and make a note of them so that we can write it up into a script. In this example we will write a script file that will create an A1 PDF plot of a drawing. Defining a processBefore we can automate a process, first we have to define it.

Editing out the JunkThe next step is to edit out what you don’t need.You don’t need AutoCAD’s command line prompts. Copy the commands from the AutoCAD text window, and paste them into your notepad file. You may have to step through the routine a few times to get all the answers you need.When we have produced a plot manually, we can open up the text window (hit F2 on your keyboard) to review the steps.The next step is to open a new blank notepad file (Please don’t be tempted to use Word or another word processing programme for this!). Copy these options out into a text file for later reference. To this end we will use the command line version of the plot command ‘-PLOT’ (the hyphen suppresses the plot dialogue) and we will manually step through the options to produce our plot.Tip: If you don’t know the answer to the question AutoCAD is asking you, type ‘?’ at the command line and hit return to see a list of available options.

Testing the scriptThe next step is to test the script. This is equivalent to pressing ‘Return’ to complete the command. Make sure all the text for each step is on the same line.You should end up with something that looks like this:Don’t forget that you will need an empty line at the end of your script. An empty line is equivalent to you pressing ‘Return’ on your keyboard, so leave those empty lines in!Watch out for character wrapping inherited from the AutoCAD text window.

Scr file and keep trying until you are happy! Adding Comments (putting some junk back in)Now you have a running script file it is a good idea to add a few comments to remind you what you did. Make the corrections in the. Use the text window to see how far your script ran before it stalled.
